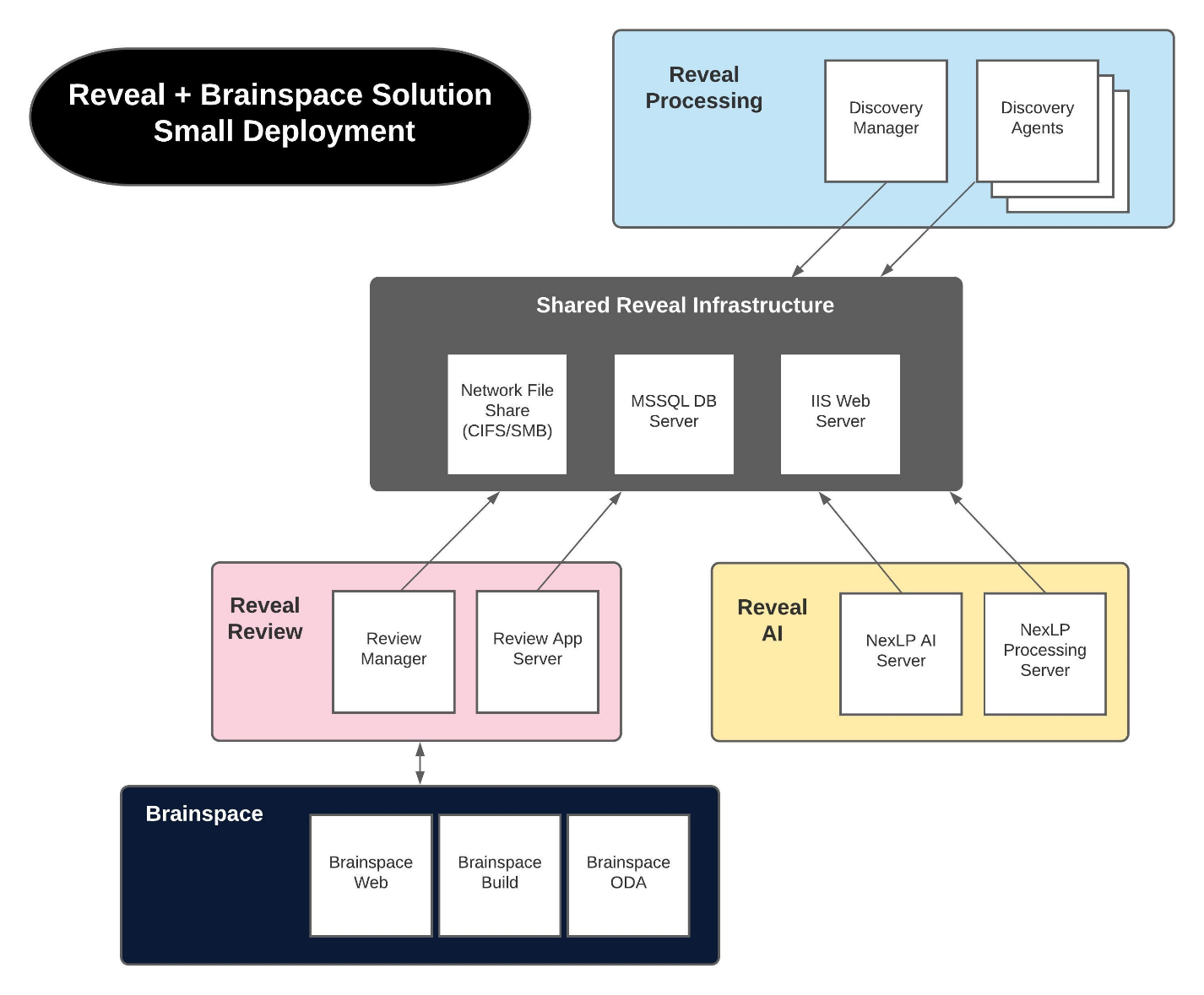

Small Deployment
Qty | OS | Purpose | CPU | RAM | Storage | Additional Comments |
|---|---|---|---|---|---|---|
1 | Windows Server 2016 or later | Web Server (Review and AI) | 8 | 32GB | 1TB | IIS 10 or later. Also includes Elasticsearch node. Fast, local storage highly recommended for Elasticsearch element. |
1 | Windows Server 2016 or later | Database Server (all solutions) | 24 | 128GB | 4TB | MSSQL 2016 or later, Standard or Enterprise Edition. |
1 | Windows Server or Unix/Linux with SMB/CIFS | Shared File Server (all solutions) | 2 | 8GB | 6TB | |
1 | Windows 10x64 or Windows Server 2016 or later | Processing Desktop Managers | 4 | 4GB | 150GB | |
3 | Windows 10x64 or Windows Server 2016 or later | Processing Agents | 8 | 8GB | 150GB | Fast, Local Storage highly recommended. Outlook 64-bit is required. |
1 | Windows Server 2016 or later | Review Application Servers | 8 | 32GB | 1TB | Fast, Local Storage highly recommended. Also includes Elasticsearch node. |
1 | Windows Server 2016 or later | Reveal AI Server + Caching Server | 4 | 32GB | 200GB | |
1 | Windows Server 2016 or later | Reveal AI Processing Server | 8 | 64GB | 200GB | |
1 | Linux 7.6 or later | Brainspace Web Server | 16 | 156GB | 4TB | |
1 | Linux 7.6 or later | Brainspace Build Server | 12 | 64GB | 3TB | |
1 | Linux 7.6 or later | Brainspace ODA Server | 10 | 48GB | 3TB | |
1 | Windows Server 2016 or later (or Linux/Unix) | Elasticsearch Master, Data & client node | 6 | 32 | 1TB | This node will act as Master, Data & Coordinating node of Elastic. All Services will point to this node for Elastic Operations including backups |
 |
All components should reside on same subnet to minimize latency.
Optional AI NexBERT functionality is presumed to use Microsoft Azure Machine Learning service. On-premise deployments of NexBERT are supported.
Please keep in mind technical restrictions (Memory, CPU Cores, etc.) for Microsoft SQL Server editions when considering adjustments to the above recommendations; the Reveal solutions can each use separate MSSQL servers if that is beneficial from a budgetary standpoint.
